Impact wrench 1/2' Drive kit
The impact wrench is used to deliver high torque to either loosen or tighten projects in many industries from automotive repair to heavy equipment maintenance.
In operation, a single hammer is accelerated by the motor to make contact with the 1/2' output shaft to deliver high impact torque as much as 310 Newton-Meter.
A compressor is required with an air flow delivery of at least 228 l/min at 6.3 Bar to make use of the impact wrench.
Make sure that an in-line lubricator is fitted with pneumatic oil ().

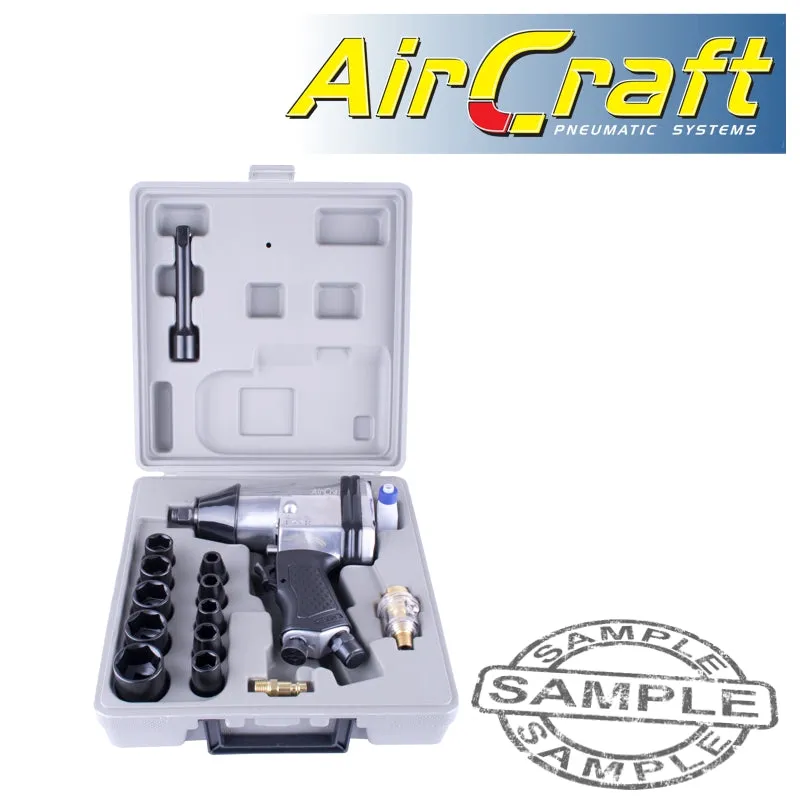

Included in the kit:
- Impact sockets
- 9mm
- 10mm
- 11mm
- 13mm
- 14mm
- 17mm
- 19mm
- 22mm
- 24mm
- 27mm
- 125mm extension
- In-line lubricator (oiler)
- Connector (1/4' NPT)
- Pneumatic oil
| consider safety for your health and the people around you | |||
General safety suggestions:It is advisable to always have the following items nearby and in a good condition
|
|||
|
Wear Gloves
|
Eye Protection
|
Hearing Protection
|
Dust Mask
|
| Description | Specification |
| Working pressure | 6.3 Bar |
| Maximum torque | 310 Nm |
| Free speed | 7000 rpm |
| Average air consumption | 228 l/min |
| Suggested minimum compressor HP | 2 HP |
AT0006Pneumatics > Power Tools > Impact Wrenches
